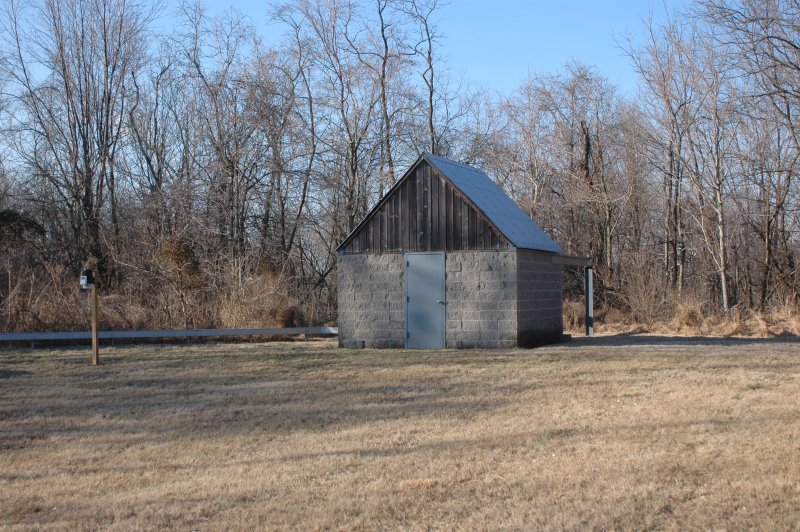

Roll Roof Facility at Moore Observatory




Click for a better view

This general purpose enclosure offers access to the sky for several small instruments. Its truss roof rolls back on the steel I-beams and tracks that extend to the north of the building. A chain drive attached to the underside of the trusses provides the power that makes opening the observatory simple. Heavy steel pins secure the roof when it is closed. The building is on a concrete pad originally intended for a student radio telescope, and it is serviced by a convenient cable trough that provides power and network from the main building.

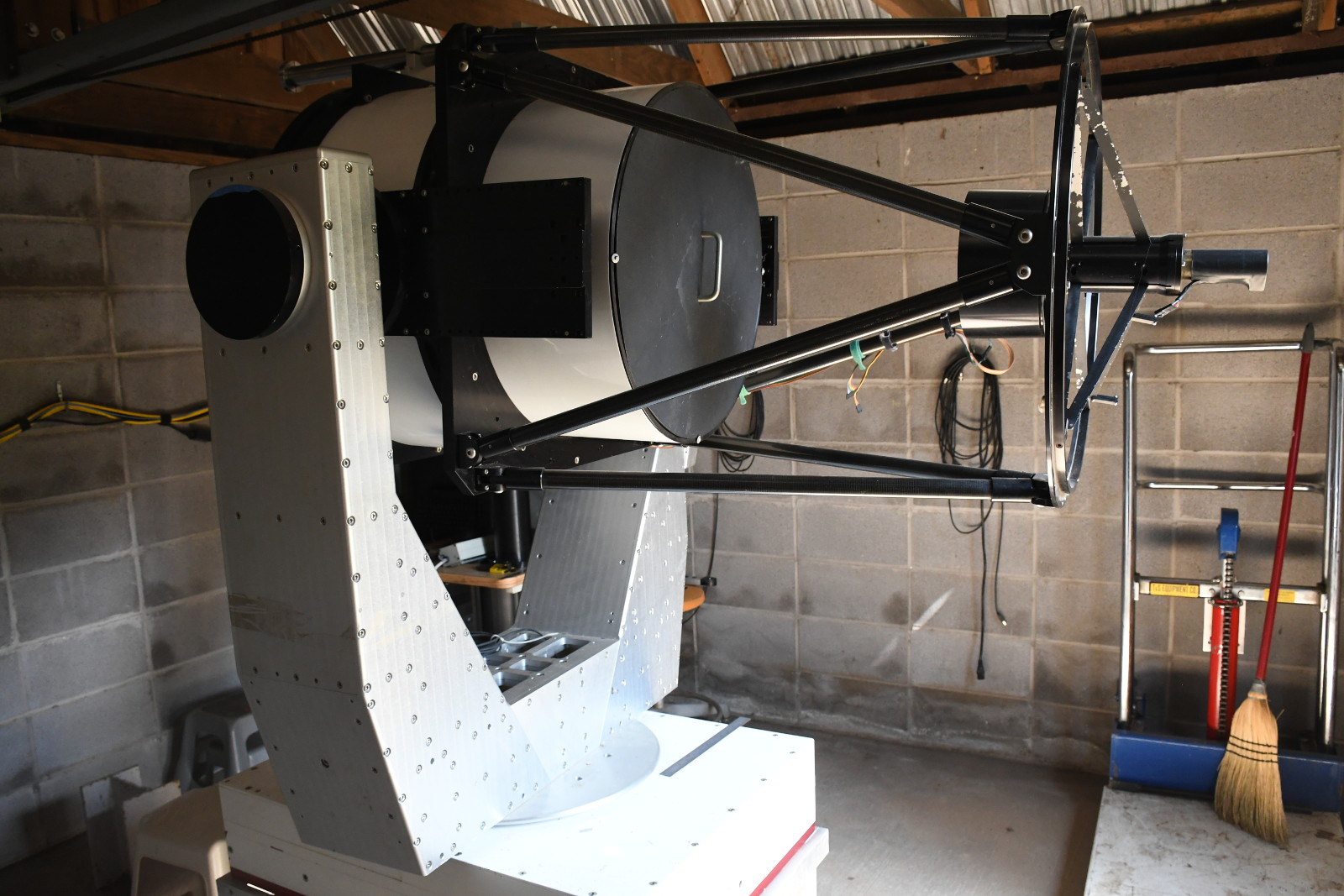

Roll Roof Instruments
